Wood Louver 98-W

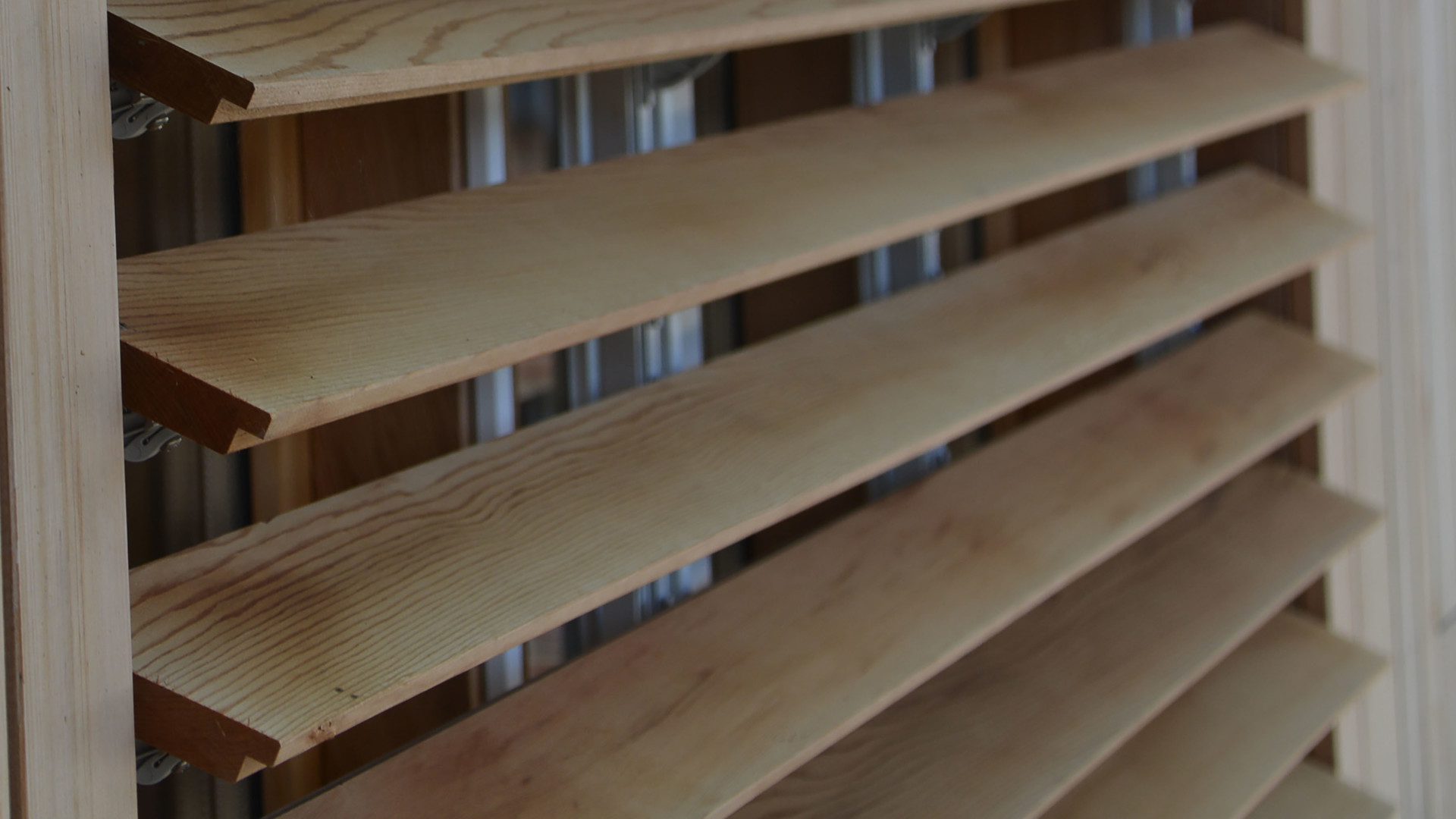

98-W wooden slat, product page image

The 98-W louver system is a non-retractable slatted blind made of wooden 98-W louvers. The width of this louver is 98 mm, the thickness 16 mm. The 98-W louver system is suited for all kinds of internal and external installations; horizontal, vertical, and sloping. And even upside down. The blades of the blind can be either movable, or placed in a fixed position.

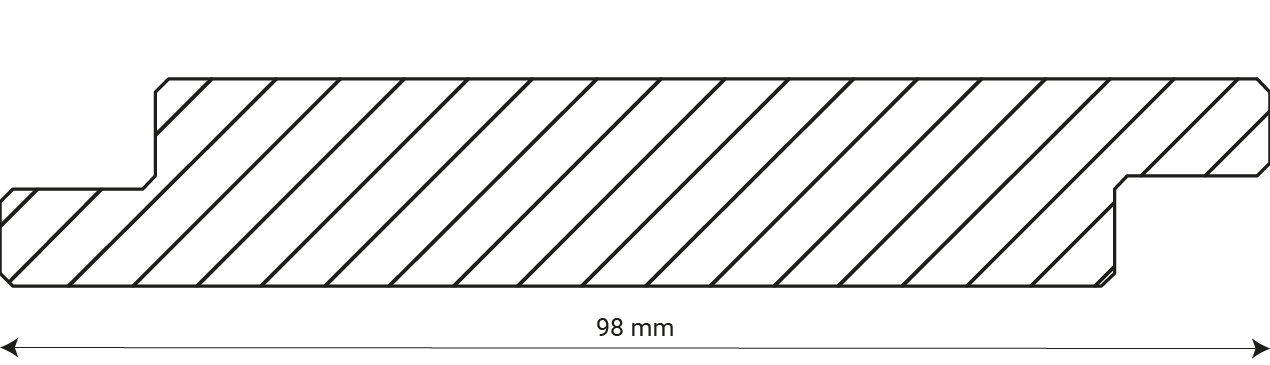

Profile of the 98-W Louver

The top and bottom of the 98-W are planed, giving the blade a Z-shaped profile. These rebates are 12 mm wide, and 8,5 mm deep, leaving a thickness of 7,5 mm. The 98-W can be applied in all kinds of blinds, and in a variety of special shapes, such as triangles, trapezia, and circles.

louver profile 98W with width

The 98-W Louver System

The following image shows a schematic representation of an 98-W louver system. Such a system consists of at least two rack arms, and a number of louvers, blades.

Drawing rack arm distance S-system

Louver properties

Property
General
Louver type
98-W
Size of louver
98 mm
Thickness of louver
16 mm
Movable
0° – 90°
Louver distance / Step (S)
90 mm
Maximum width (W)*
360 cm
Maximum drop / length (L)*
600 cm

Interior
Exterior
Maximum rack arm distance (X)
130 cm
120 cm
Maximum side overhang (Y)
30 cm
30 cm
Support distance


S 35 mm rack arm
180 cm
150 cm
S 80 mm rack arm
300 cm
280 cm
S 98 mm rack arm
420 cm
350 cm
* = the number of rack arms placed on top, or next to each other, is unlimited.

Sunshield 98-W louvers, the blades, are moveable, and can be placed in any position between 0 and 90 degrees. Sunshield louver systems, the blinds, can be installed horizontal, vertical, in any desired slope, and upside down.

A wide variety of Colours and types of wood

Western Red Cedar is an excellent choice for wooden louvers. It has a straight grain, is lightweight, stable and durable. Sunshield offers all kinds of colours and treatments, also for the wood slats. Aluminium components can be supplied in any RAL colour. It is even possible to have louvers, rack arms and plastic components in distinguishing colours to achieve sophisticated architectural impressions. Custom made colours and structures are possible at request. A overview with most common colours for the 98-W louver is given below.
